Waste Veneer Chipper

未设置图片

BX2- Series Waste Veneer chipper, with specially designed rotor knives for chipping waste veneer residues, wood slabs.

Application:

  • OSB board production
  • MDF board production
  • Particleboard production

Users' Benefits:

  • Solve the problem of raw material shortage
  • Comprehensive utilization of veneer residues, tree barks
  • Improve particleboard quality

Waste Veneer chipper is the tailor-designed solution for the production of high-quality chips from waste wood veneer residues. The material is gripped horizontally by specially toothed feeding rollers and continuously fed to the chipping rotor. The knives of the rotor cut the material to the required chip length.

veneer waste

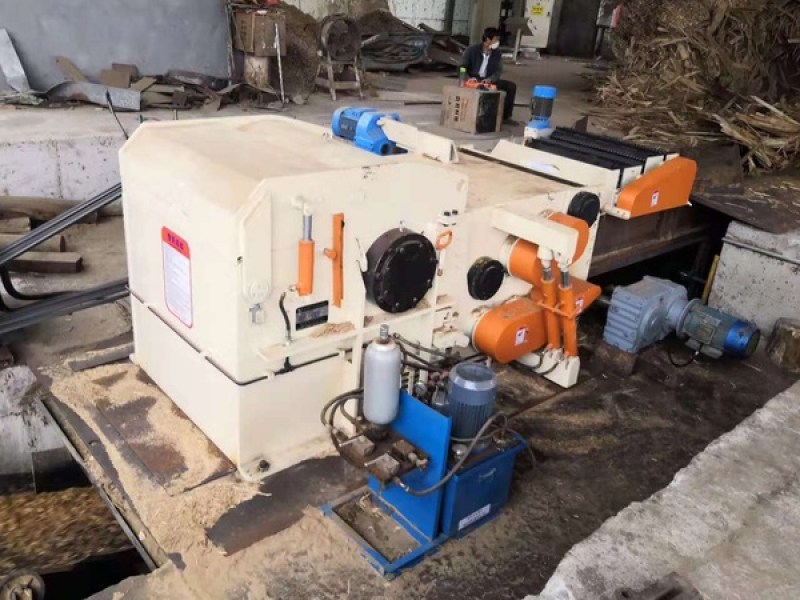

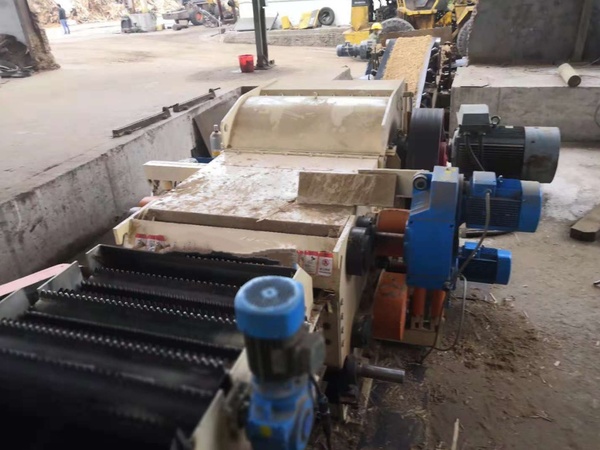

veneer chipper



Specifications:

Types KJBX226 KJBX218Y KJBX2110Y
Rotor diameter(mm) 650 800 1000
Qty of knives(pc) 2 8 2*2
Inlet Dimension(mm) 180*500 225*750 330*1050
Rotor Speed(rpm) 330 650 550
Qty of feeding roller (pcs) 4 4 6
Max input veneer length(mm)       90 30 30
Output chips length(mm) 1-2 1-2 1-2
Capacity(cubic meter/hour) 10 40 75
Main motor(kW) 55 132 220
Machine dimension(mm) 4350*2060*1260  4670*2250*1520   9460*3500*1500



Output waste wood veneer chips:
