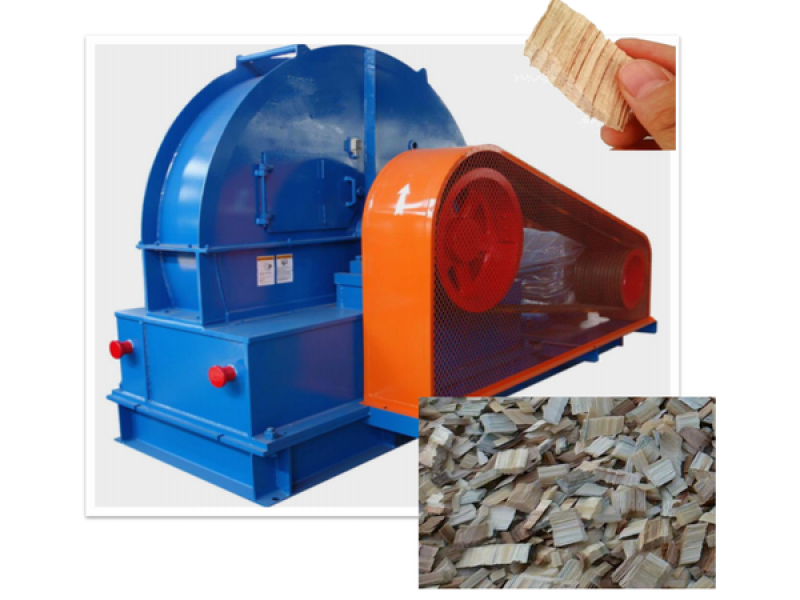

Disc Wood Chipper
The Disc Wood Chipper can turn logs into high-quality thin wood chips with uniform size. It requires raw material in diameter more than 30mm, and length not less than 500mm, with the bark peeled. The output chips will be in length between 20mm to 40mm, thickness 3mm to 6mm. The length can be adjustable.
 |
 |
Application:
- Panelboards (PB, MDF), shaving board, fabric board
- Pulp and paper
- Mushroom growing
Customer benefits:
- Robust, long-term reliability, low operating costs due to simplified maintenance
- Essential parts of the machine wear-protected and exchangeable
- Chips size adjustable
Technical features:
- Special for the production of high-quality wood chips from round wood
- Annealing and sandblasting of chipper base
- Disc tested by flaw detection
- A numerical control machine tool is adopted for overall processing
Specifications:
| Types | KJBX1212 | KJBX1216 | KJBX1218 | KJBX1220 |
| Rotor diameter(mm) | 1220 | 1600 | 1800 | 2060 |
| Qty of knives(pc) | 6 | 6 | 6 | 6 |
| Inlet Dimension(mm) | 300*300 | 545*383 | 420*420 | 480*480 |
| Rotor Speed(rpm) | 740 | 625 | 500 | 500 |
| Feed Type | Incline | Incline | Incline |
Incline or Horizontal |
| Max input diameter(mm) | 200 | 230 | 250 | 280 |
| Output chips length(mm) | 20-35 | 20-35 | 20-35 | 25-35 |
| Capacity(cubic meter) | 15-20 | 25-45 | 60-90 | 160 |
| Main motor(kW) | 90/110 | 220 | 315 | 500 |
| Machine weight(kgs) | 4580 | 8730 | 15500 | 25300 |
| Machine dimension(mm) | 3100*1570*1615 | 3100*1340*1720 | 2300*2000*2035 | 5770*3956*2990 |
How does the disc wood chipper work?
Please watch the VIDEO.
