Wood Dual Shaft Shredder
Features:
- High torque, low shaft speed
- Counter-rotating cutter
- Disks in a variety of tooth patterns and sizes.
- Minimum noise, dust, and energy requirements
- Automatic reverse in case of a jam.
 |
 |
| BEFORE | AFTER |
Specification:
| Types | KJSS60 | KJSS70 | KJSS80 |
| Main Motor | 37kW*2 | 55kW*2 | 75kw*2 |
| Shredding Romm | 642*1005mm | 740*1221mm | 822*1221mm |
| Inlet Size | 1780*1417mm | 1996*1514.5mm | 1996*1597mm |
| Input wood max size | dia150mm | dia200mm | dia200mm |
| Qty of Rotary Blades | 19+18pcs | 23+22pcs | 23+22pcs |
| Output chips size | 30-50mm | 30-50mm | 30-50mm |
| Capacity | 2-3T/H | 3-4T/H | 4-5t/h |
| Dimension | 3900*2400*1710mm | 4100*2750*1775mm | 4100*2900*1830mm |
| Weight | 7000kgs | 9000kgs | 11000kgs |

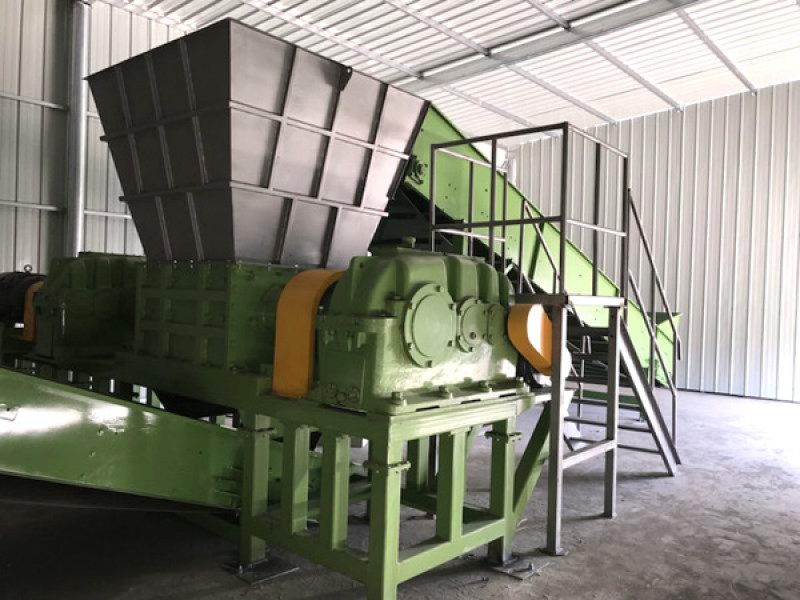

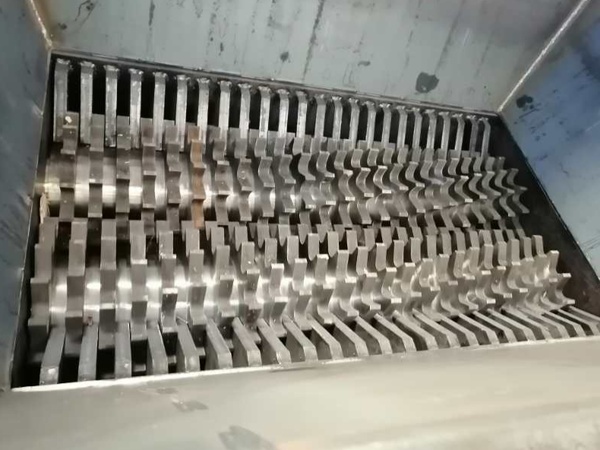

Machine pictures:
 |

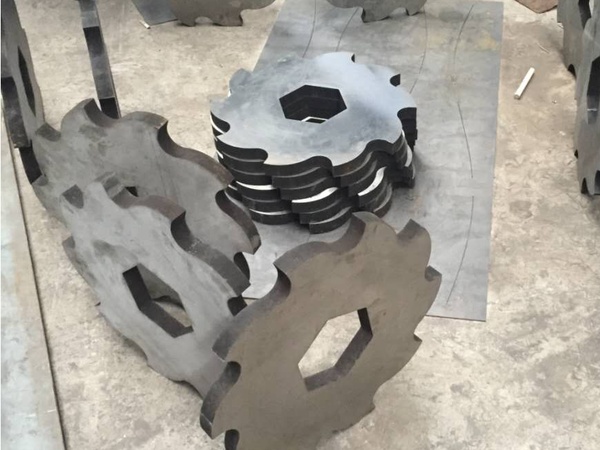

Blade: Quantity and thickness of the teeth, will be customized according to the user's requirement of output chips size.
 |
 |
