Products
Tree Stump Shredder
Features:
- Pre-shredder for difficult material such as tree stumps or hardwood trunks
- Rotor with knives in a variety of tooth patterns and sizes.
- Counter-knife variants
- Specially adapted screen rod sizes
- High torque, low shaft speed
- Robust and Heavy-duty, capacity: 10-60T per hour tailor-designed
- The engine can be an electric motor or diesel generator
- Can be movable with the wheels or crawler
Wide variety of input materials :
- Municipal and commercial solid waste
- Residual production materials
- Wood waste
- Root wood

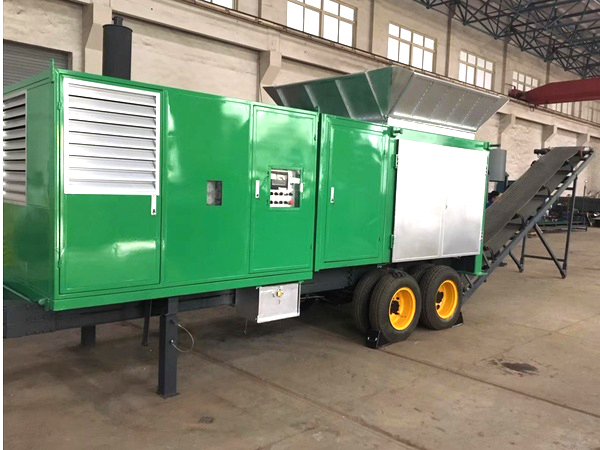

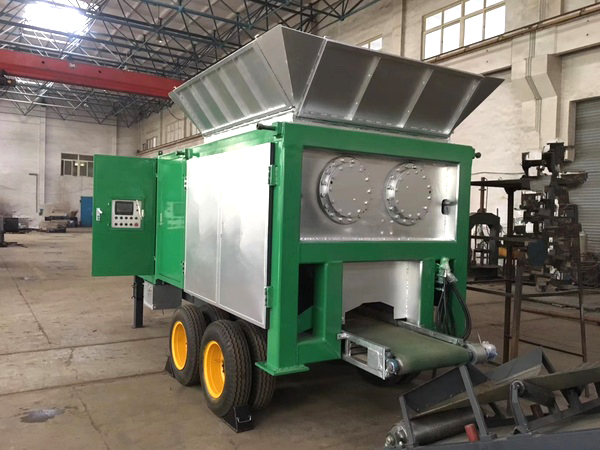

Machine Pictures
 |
 |
Specification:
| Types | KJSS1400 | KJSS2100 | KJSS2800 |
| Main Motor |
Diesel 130hp Or Electric 110kw |
Diesel 220hp Or Electric 160kw |
Diesel 310hp Or Electric 220kw |
| Rotor | 2pcs | 2pcs | 2pcs |
| Rotor size | dia600*1400mm | dia760*2100mm | dia600*2800mm |
| Rotor speed | 42rpm | 42rpm | 42rpm |
| Qty of Rotary Knives | 64pcs | 96pcs | 128pcs |
| Output chip size | 80-200mm | 80-200mm | 80-200mm |
| Capacity | 18-20T/H | 23-25T/H | 38-40t/h |
| Weight | 12000kgs | 18000kgs | 20000kgs |

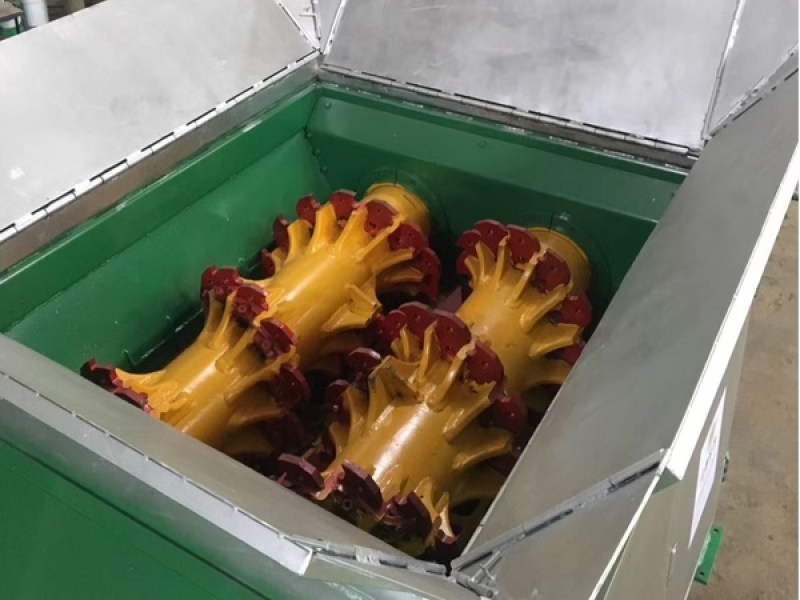

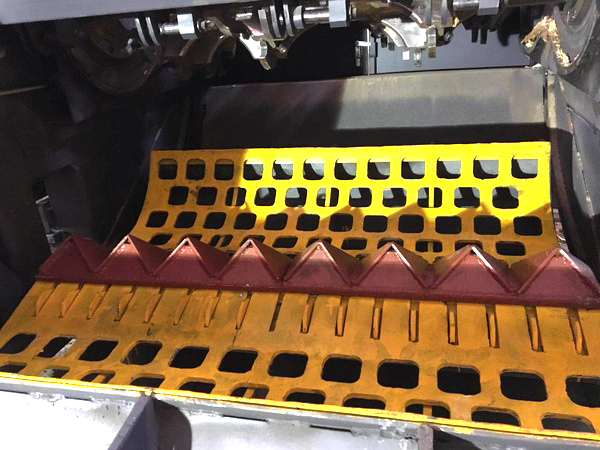

Rotor and screen:
 |
 |
