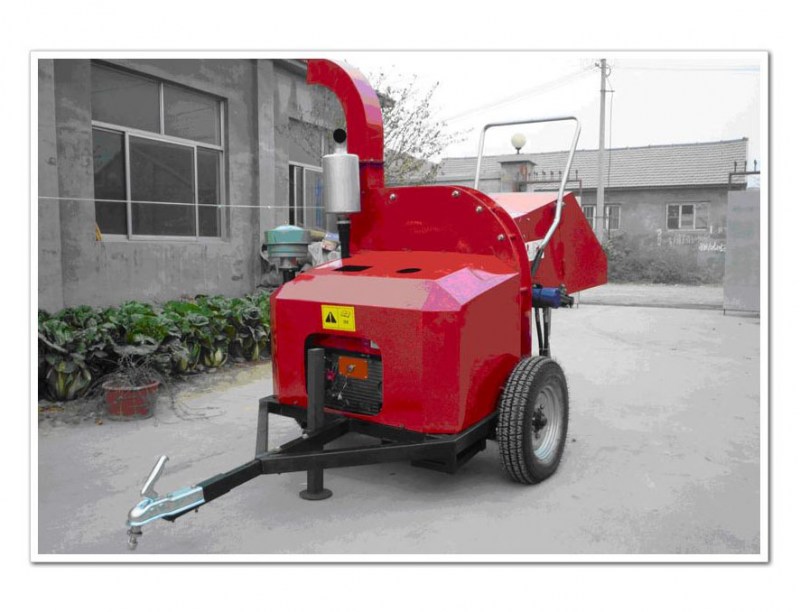

Wood Crusher with Hydraulic Feeding

This series of wood crusher has significant features, trailer mounted,complete automatic hydraulic sel-feeding sstem,360 degree turnable easy discharge hood. 2" ball hitch & safety chains and leaf spring on the axle.


Model Number KJWC-30 KJWC-40
Engine 30 hp ,water-cool, one cylinder diesel engine 40 hp ,water-cool, 4 cylinder diesel engine
Size of input and output material                          8inch diameter(Input), less than 3inch(Output)                               12inch diameter(Input), less than 3inch(Output)
Rotor plate size mm 60mm 110mm
Feeding system Full hydraulic, adjustable speed,  stop-reverse-forward function Full hydraulic, adjustable speed,  stop-reverse-forward function
Rotor plate weight 120kg 130kg
Knives number 1 stationary knife; 2 rotor knives 1 stationary knife; 2 rotor knives
Dimensions (hopper discharged) 1300*1400*1100mm 1300*1400*1100mm
Feed hopper inner opening 200-230mm 310-350
Discharge hood height 1800mm 1800
Rated rpm 1080 1080
Net weight 680kg 810kgs
Production capacity 9-14cbm/h 9-19cbm/h
