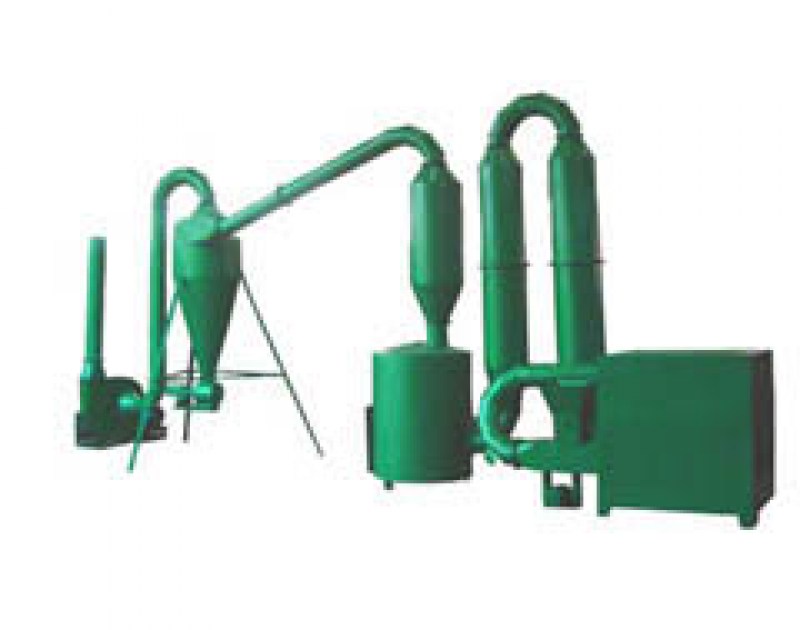

The airflow Type Dryer can reduce the moisture content of sawdust below 12% per time. The Cost of this Dryer is
much lower than Rotary Dryer.
It is simplely designed for drying different kinds of wood sawdust. It has advantages of low cost, low electricity
consumption, easy operation and maintainace, etc.
KJTD(With two stoves),it is suitable to process materials which moisture content between 35%-50%.It can reduce
the humidity to 8%-12% one drying time. That means it can reduce approx.30% for one drying time.
Model |
KJTD500 |
KJTD700 |
Capacity(Kg/hour) |
400-500 |
500-700 |
Size of Input material (Diameter) mm |
< 3mm & < 5mm |
< 3mm & < 5mm |
Temperature of Hot Air |
180°C~250°C |
180°C~250°C |
Power(Kw) |
7.5+0.75+0.75 |
11+0.75+1.5 |
Gross/Net Weight (Kg) |
2290/1990 |
3080/2850 |
Packing Dimension (m) |
1.5×1.06×1.1 1.23×1.22×1.68 |
1.4×1.32×1.44 1.23×1.22×1.68 |
