KJSD500 airflow dryer also has single furnace(boiler/stove), but has larger capacity, 300-500kgs/hour input

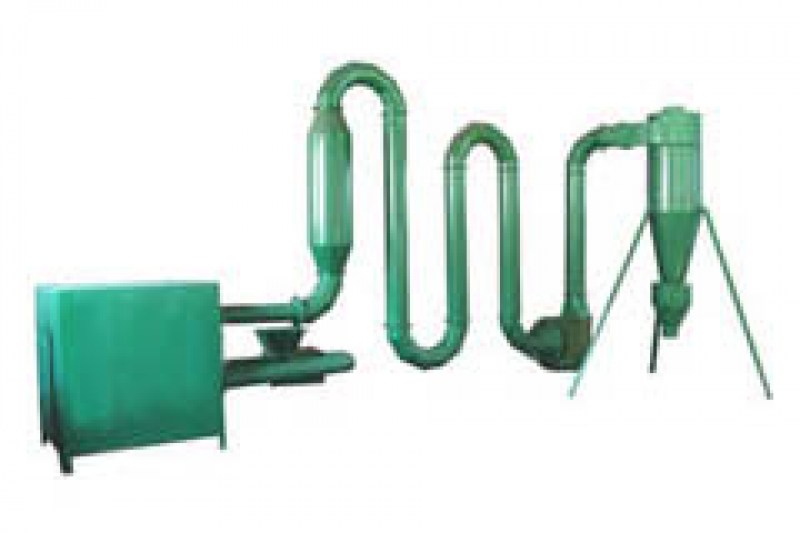

The whole system consists of fan, fuel furnace, steel pipe, cyclone and air lock.
Fuel of this dryer can be wood waste like tree branch, tree trimmings, wood chips, coal or any waste that can burn
Operation principle:
In this drying system, fuel furnace produces large volume of hot air, those hot air is suck and moved through steel
pipe by the power of fan. Fast moving hot air sustains and is mixed with raw material sent by spiral feeder in the
suspending state through the steel pipe, moisture evaporates as the material traverses along the steel pipe and
is rendered dry at the discharge end. Humid air is continuously exhausted, thus the material is dried.
The Moisture reducing rate of the sawdust dryer KJSD500 is 8-12%. This dryer is equipped with one hot air boiler,
it is suitable for drying raw material with moisture content less than 20-25%.If the moisture content
of the raw material is higher than that, it will need two or three times of dry up to achieve the requested
moisture content for pelleting or briquetting
Model |
KJSD500 |
Capacity(Kg/hour)input |
300-500 |
Size of Input Material (Diameter) |
< 3mm & < 5mm |
Temperature of Hot Air |
180°C~250°C |
Consumption of Wood Waste |
25-30 kg/h |
Power (Centrifugal Fan+Air Lock) |
7.5kw+0.75KW |
Gross /Net Weight |
1960/1760kg |
Package Dimension(m) |
1.50x1.06x1.10 |
|
|
You may need moisture meter to measure the sawdust moisture content before drying. Please check us for the price.
